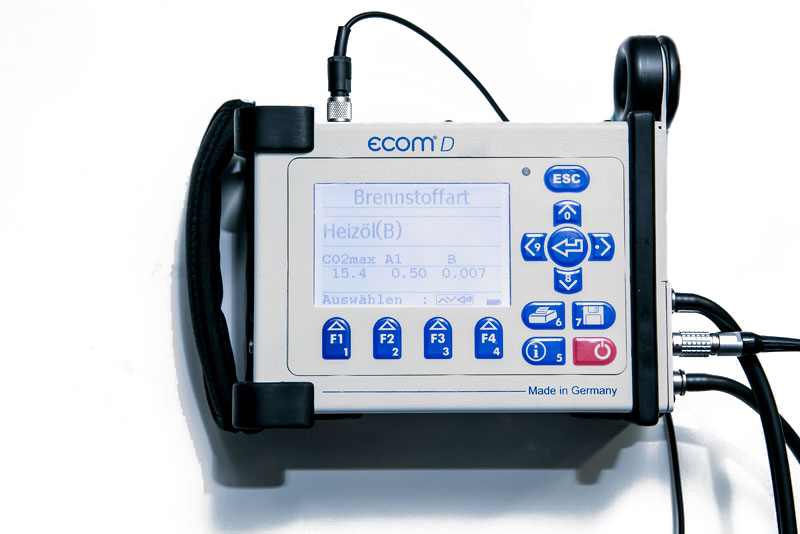

ECOM-D Gas Analyzer

The ECOM-D Gas Analyzer is engineered to perfectly adapt to your individual testing needs. We offer custom configurations and features like an App to allow for remote readings and wireless data transfer to your tablet or smart phone as well as PC based software for customized reporting.

  • Up to 5 electrochemical sensors, including infrared

  • Sensor options: O2, CO, NO, NO2, SO2, H2S, CXHY, CO2 & CH4 (IR)

  • CO purge pump to prevent oversaturation

  • Condensate trap with electronic shut off

  • Ambient or peltier cooler sample conditioner

  • Flue gas, ambient & sensor temperature

  • Averaging test feature

  • Onboard calculations for CO2

  • Efficiency, excess air and O2 correction

ECOM-D Gas Analyzer

Specifications

Measurements Range Accuracy Resolution Sensor*** Sensor Type
Oxygen (O2) 0-21 vol% ± 0.2 vol% 0.1 vol% 4-5 Years Electrochemical
Carbon Monoxide (CO) 0-10,000ppm ± 2% Measured* 1 ppm 6-8 Years Electrochemical
Carbon Monoxide (high) 0-63,000 ppm ± 2% Measured* 5 ppm 6-8 Years Electrochemical
Nitric Oxide (NO) 0-5,000 ppm ± 5% Measured* 1 ppm 6-8 Years Electrochemical
Nitric Oxide (low) 0-500 ppm ± 5% Measured*​ 0.1 ppm 6-8 Years Electrochemical
Nitrogen Dioxide (NO2) 0-1,000 ppm ± 5% Measured*​ 1 ppm 6-8 Years Electrochemical
Nitrogen Dioxide (low) 0-100 ppm ± 5% Measured*​ 0.1 ppm 6-8 Years Electrochemical
Sulfur Dioxide (SO2) 0-5000 ppm ± 5% Measured*​ 1 ppm 6-8 Years Electrochemical
Hydrogen Sulfide (H2S) 0-1000 ppm ± 2% Measured*

1 ppm

4 Years Electrochemical
Carbon Dioxide (CO2) 0-20 vol% ± 5% Measured*​ 0.1vol% 5 Years Infrared Sensor
Methane (CH4) 0-5 vol% ± 2% Measured* 0.01vol% 5 Years Infrared Sensor
Combustibles (CXHY) 0-4 vol% ± 5% Measured*​ 0.01vol% 5 Years Pellistor
Draft / Pressure ± 40” H2O ± 2% Measured* 0.004” H2O 10 Years DMS
Gas Temperature 32-1832 F ± 0.5%**
Ambient Temperature –4-250° F ± 1° F
O2 Correction 0-20% Oxygen Calculated
Carbon Dioxide 0-CO2 max of fuel Calculated



Specifications are subject to change without notice.
* Accuracy: When calibrated prior to use per ECOM America, Ltd. specifications.
** Probe dependent
*** Sensor life will vary due to frequency of use and application
